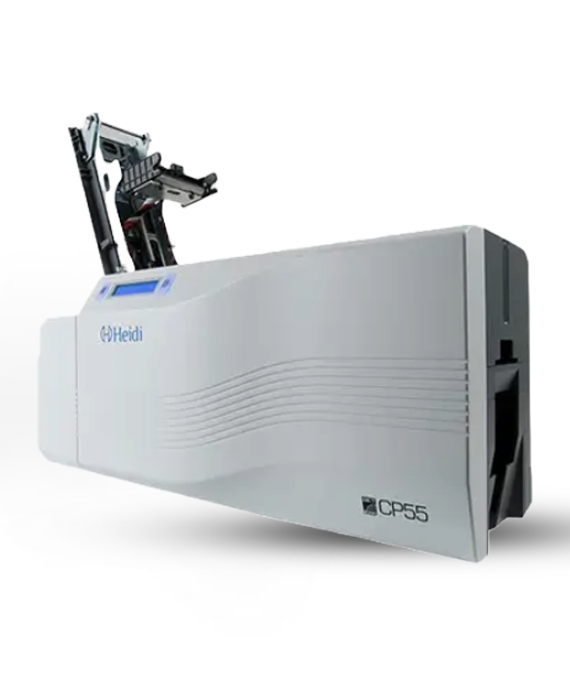

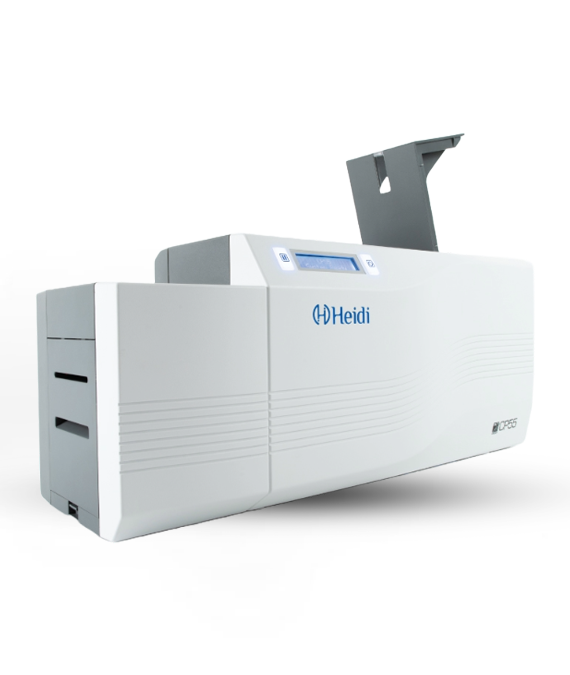

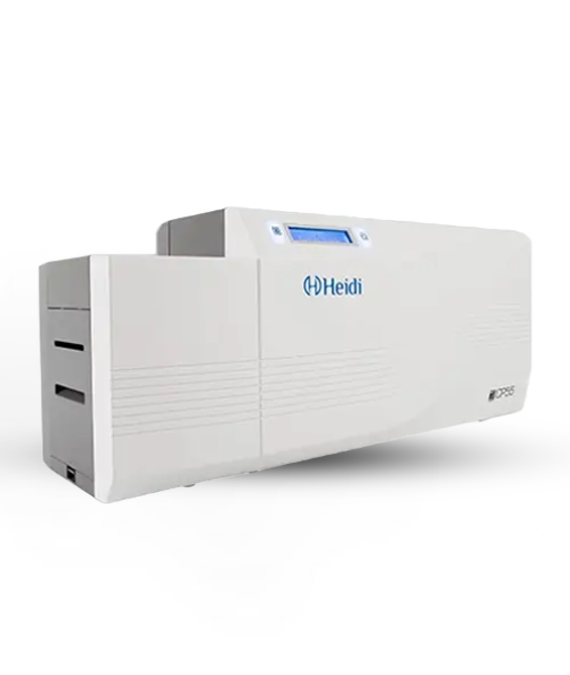

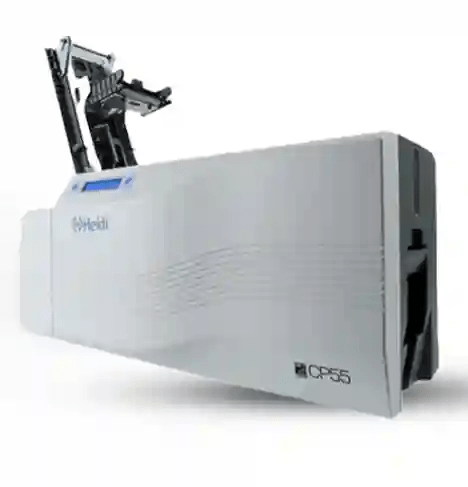

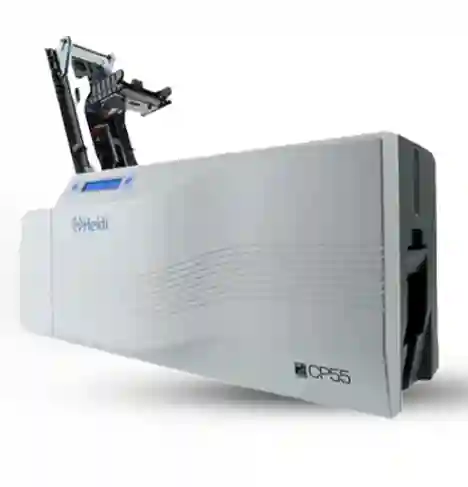

Heidi CP55-D Dual-Side Card Printer
Heidi CP55-D Dual-Side Card Printer in UAE
The modern dual-sided card printer Heidi CP55-D was built to effectively fulfill client requirements for a high-performance and easy-to-use card printer. It was carefully designed by GET Group to deliver an outstanding printing quality at a competitively lower cost-per-card and to remarkably serve a wide range of card-issuance applications. It is perfect for low-to-medium production requirements.
Features and Benefits
Heidi CP55 is a high-speed direct-to-card printer built to deliver innovative imaging and excellent printing quality at a competitive cost-per-card. It is a highly adaptable solution designed to serve many sectors within various user environments and card-issuance operations. Heidi CP55 is simply deployed, operated and maintained.
- User-FriendlyEasy-to-use and maintain, simply plug and print.
- AffordableReliable operations, high-resolution printing offered at a reasonable price.
- Highly ScalableAn all-in-one printing solution with upgradable options, ribbons and software.
- Trusted SecurityContact, contactless, and magnetic stripe encoding for high-standard digital security compliance with EMV. Equipped with physical lock.
- Smart DesignCompact size with a unique design, ideal for limited workspaces.
- CapabilitiesThe CP55 is a high-quality printer with 300×300 dpi, edge-to-edge printing on various types of cards and thickness with a wide range of ribbons.
- OperationAll-in-one ribbon cassette and cleaning roller simplify ribbon loading and cleaning processes. Easily operated LED indicators, buttons and instant system status LCD display.
- PerformanceThe built-in 64 MB memory facilitates the high-speed storing and processing of printing jobs.
- PersonalizationProvides multiple options for protection against card tampering and fraud attempts by adding a covert layer of security using an ultra-violet (UV) ribbon along with smart card encoding. It supports the secure global EMV standard, ensuring that cards are interoperable with the global payment infrastructure.
- ModularitySeamlessly upgrade to magnetic stripe, smart card encoders and physical lock for trusted security. Additional feature of Ethernet upgrade module enables Heidi CP55-D printer to be networked for access by multiple users or from a central location.
Please contact +971551189793 or Email: info@cardlineuae.com for enquiries and prices for Heidi CP55-S Single-Side Card Printer in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo.
Technical Specifications
| Standard Features | ||
| Printing Method | Direct to card dye-sublimation/resin thermal transfer | |
| Accepted Standard CardSizes/Format | ISO CR-80 (3.375˝L x 2.125˝W/85.6 mm L x 54 mm W) | |
| Accepted Card Thickness | 0.38mm (15mil) ~ 1.0mm (40mil) | |
| Resolution | 300 dpi (11.8 dots/mm) | |
| Print Area | CR-80 (3.36˝L x 2.11˝W/85.3 mm L x 53.7 mm W) | |
| CPU | AM3352 600MHz | |
| Printing Speed | Color (YMCKO): 170 cards/hour | |
| Color (YMCKOK): 130 cards/hour | ||
| Black Overlay (KO): 360 cards/hour | ||
| Mono (Black): 720 cards/hour | ||
| Print Ribbon Options | Full-color with resin black and overlay panel, YMCKO, 250 prints/roll | |
| Full-color with two resin black panels and overlay panel, YMCKOK, 200 prints/roll | ||
| Resin black with overlay panel, KO, 600 prints/roll | ||
| Mono (Black, Gold, Silver): 1,200 cards/roll | ||
| YMCUVO Blue: 200 prints/roll | ||
| Half YMC Full KO: 350 prints/roll | ||
| Input Hopper Card Capacity | 100 cards (200 cards with cover open) | |
| Output Hopper Card Capacity | 40 cards (100 cards with option backside stacker) | |
| Card Cleaning | Cleaning roller with each cartridge | |
| Memory | ROM: 2MB, RAM: 64MB | |
| Software | GET Identity (ID Card Design & Management Software) | |
| Interface | USB 2.0, Ethernet Optional | |
| Display | 2 Lines(16×2) LCD & LED | |
| Power | Free Voltage (110/240V AC), 50 ~ 60 Hz, 45W | |
| Dimensions | 486mm(W) x 208mm(H) x 166mm(D) | |
| Operating Environment | Temperature: 20 ~ 35℃, Humidity: 20 ~ 80% | |
| Weight | 6.0 Kg | |
| Certification | CE, CB, FCC | |
| Operating System Support for Printer Driver | Windows 7/8/10, Linux, Mac | |
| Warranty | 24-month standard depot warranty | 24-month print head warranty | |
| Kensington Lock | Back side | |
| Field-Upgradable Options | ||
| Magnetic Stripe Encoder | ISO7811 (Track Ⅰ, Ⅱ, Ⅲ Read/Write) HiCo/LoCo | |
| Contact Smart Card Encoder | ISO/IEC 7816-1,2,3,4: IC Cards with contacts EMV Terminal Level 1 version 4.1 |
|
| Contactless Smart Card Encoder | ISO14443 (Type A/B) MIFARE®, MIFARE DESFire® iCLASS® EMV2 2000 Level 1 |
|
| Ethernet | TCP/IP 10/100 BaseT | |
| Physical Lock | Top cover lock | |
