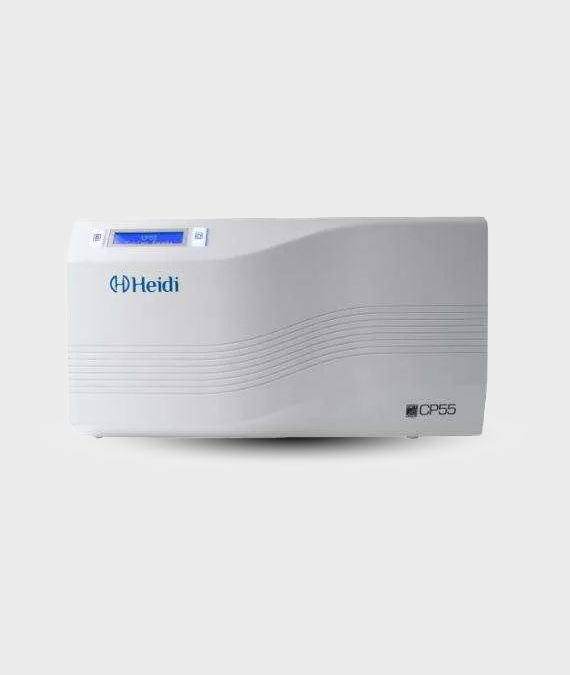

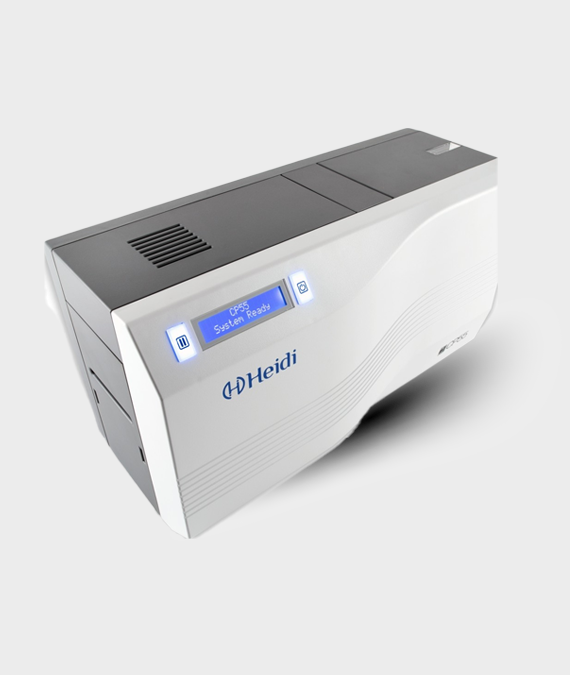

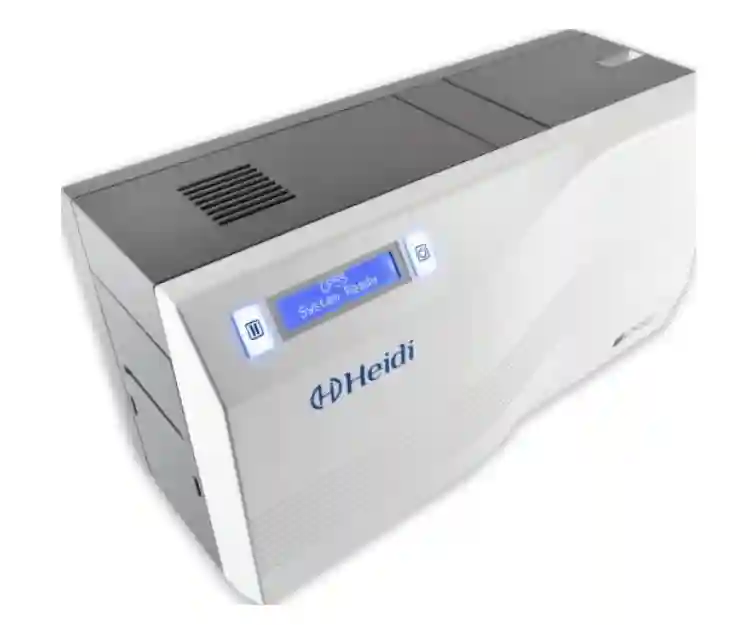

Heidi CP55-S Single-Side Card Printer
Heidi CP55-S Single-Side Card Printer in UAE
Top-of-the-line in its class, the single-sided CP55-S is a direct-to-card printer built to deliver outstanding results at a lower cost per card for a wide range of card-issuance applications.
Heidi CP55 is a high-speed direct-to-card printer that delivers innovative imaging and excellent printing quality at a competitive cost per card. It is a highly adaptable solution that serves many sectors within various user environments and card-issuance operations. Heidi CP55 is deployed, operated, and maintained.
User-Friendly
Easy-to-use and maintain, plug and print.Durable yet affordable
Reliable operations, high-resolution printing offered at a reasonable price.Highly Scalable
An all-in-one printing solution with upgradable options, ribbons, and software.Trusted Security
Contact, contactless, and magnetic stripe encoding for high-standard digital security compliance with EMV. It is equipped with a physical lock.Smart Design
Compact size with a unique design, ideal for limited workspaces.Capabilities
The CP55 is a high-quality printer with 300×300 dpi, edge-to-edge printing on various cards, and thickness with a wide range of ribbons.Operation
All-in-one ribbon cassette and cleaning roller simplifies ribbon loading and cleaning processes. Efficiently operated LED indicators, buttons, and instant system status LCD.Performance
The built-in 64 MB memory facilitates the high-speed storing and processing of printing jobs.Personalization
Provides multiple options for protection against card tampering and fraud attempts by adding a covert layer of security using an ultra-violet (UV) ribbon and smart card encoding. It supports the secure global EMV standard, ensuring that cards are interoperable with the international payment infrastructure.Modularity
Seamlessly upgrade the basic CP55 Single-Sided printer to a Dual-Sided with a flipper unit, magnetic stripe, smart card encoders & physical lock for trusted security. The additional feature of the Ethernet upgrade module enables the Heidi CP55-S printer to be networked for access by multiple users or from a central location.
Please get in touch with +971551189793 or Email: info@cardlineuae.com for inquiries and prices for Heidi CP55-S Single-Side Card Printer in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo.
Technical Specifications
| Standard Features | ||
| Printing Method | Direct to card dye-sublimation/resin thermal transfer | |
| Accepted Standard Card Sizes/Format | ISO CR-80 (3.375˝L x 2.125˝W/85.6 mm L x 54 mm W) | |
| Accepted Card Thickness | 0.38mm (15mil) ~ 1.0mm (40mil) | |
| Resolution | 300 dpi (11.8 dots/mm) | |
| Print Area | CR-80 (3.36˝L x 2.11˝W/85.3 mm L x 53.7 mm W) | |
| CPU | AM3352 600MHz | |
| Printing Speed | Color (YMCKO): 170 cards/hour | |
| Black Overlay (KO): 360 cards/hour | ||
| Mono (Black): 720 cards/hour | ||
| Print Ribbon Options | Half YMC Full KO: 350 prints/roll | |
| Resin black with overlay panel, KO, 600 prints/roll | ||
| Mono (Black, Gold, Silver): 1,200 cards/roll | ||
| YMCUVO Blue: 200 prints/roll | ||
| Full-color with resin black and overlay panel YMCKO, 250 prints/roll |
||
| Input Hopper Card Capacity | 100 cards (200 cards with cover open) | |
| Output Hopper Card Capacity | 40 cards (100 cards with option backside stacker) | |
| Card Cleaning | Cleaning roller with each cartridge | |
| Memory | ROM: 2MB, RAM: 64MB | |
| Software | GET Identity (ID Card Design & Management Software) | |
| Interface | USB 2.0, Ethernet Optional | |
| Display | 2 Lines(16×2) LCD & LED | |
| Power | Free Voltage (110/240V AC), 50 ~ 60 Hz, 45W | |
| Dimensions | 380mm(W) x 208mm(H) x 166mm(D) | |
| Operating Environment | Temperature: 20 ~ 35℃, Humidity: 20 ~ 80% | |
| Weight | 5.1 Kg | |
| Certification | CE, CB, FCC | |
| Operating System Support for Printer Driver | Windows 7/8/10, Linux, Mac | |
| Warranty | 24-month standard depot warranty | 24-month print head warranty | |
| Kensington Lock | Back side | |
| Field-Upgradable Options | ||
| Flipper (dual side print module) | Optional | |
| Magnetic Stripe Encoder | ISO7811 (Track Ⅰ, Ⅱ, Ⅲ Read/Write) HiCo/LoCo | |
| Contact Smart Card Encoder | ISO/IEC 7816-1,2,3,4: IC Cards with contacts EMV Terminal Level 1 version 4.1 |
|
| Contactless Smart Card Encoder |
ISO14443 (Type A/B) MIFARE®, MIFARE DESFire® iCLASS® EMV2 2000 Level 1 |
|
| Ethernet | TCP/IP 10/100 BaseT | |
| Physical Lock | Top cover lock | |
