MAPRO CX - Capacitive Fingerprint Scanner

What is Capacitive Fingerprint Scanner? Fingerprint Scanners are biometric security devices that are used to identify a person. Finger scanners can be connected to a computer which can be communicated to an application in the system through a software development kit (SDK) supplied by the vendor. The fingerprint scanner can provide the fingerprint to the application in a variety of ways like base64 strings, images, byte array, etc. Based on the technology used the fingerprint readers are Optical fingerprint scanners and Capacitive fingerprint scanners. In a capacitive fingerprint reader, the pattern is generated by electric voltage. The capacitive reader is expensive compared to thermal fingerprint scanners.

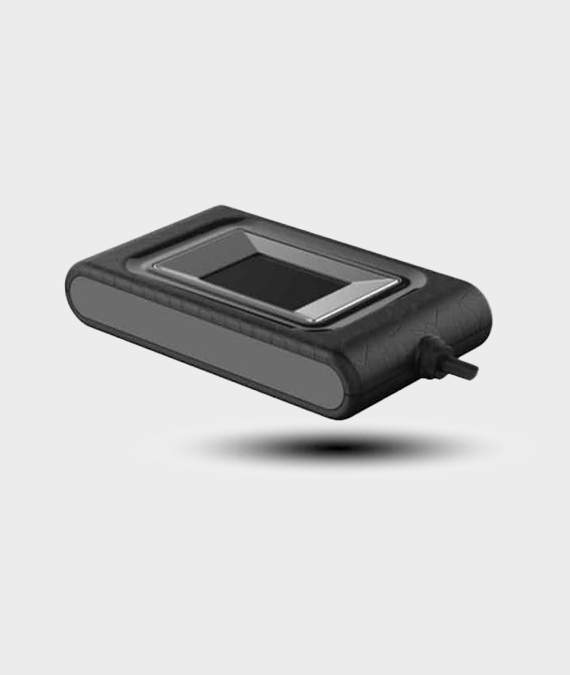

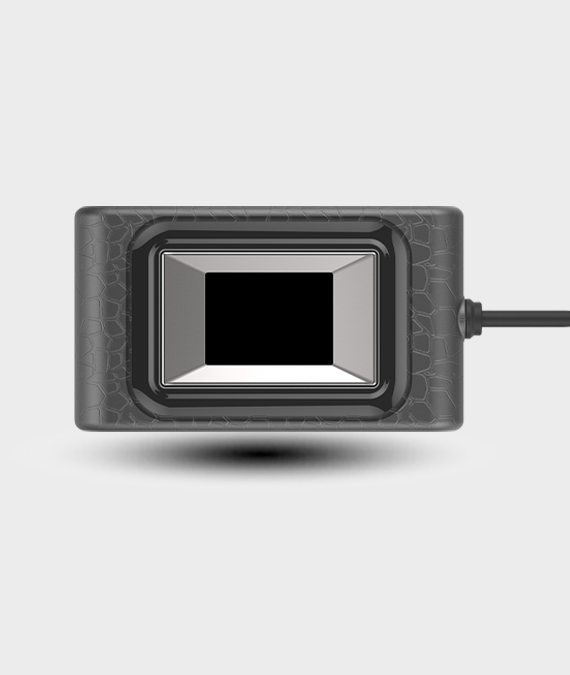

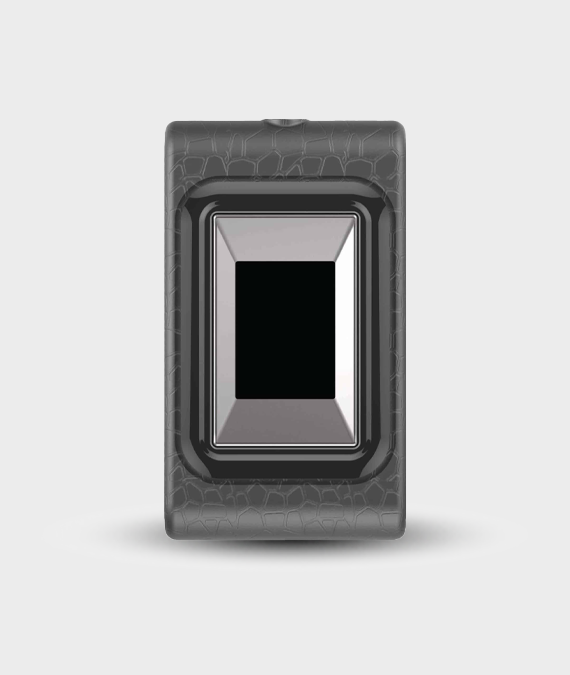

Mapro Cx Capacitive Fingerprint Scanner

Mapro CX is a reliable Capacitive fingerprint reader which is used by a variety of organizations. Mapro CX can be used for the identification and verification of an individual with high-resolution fingerprint images with the most advanced and rugged optical sensors. It is FAP10 complained fingerprint device since it supports MINEX compliance embedded extractor.

The special features of MAPRO CX - Capacitive Fingerprint Scanner include:

Device securely sign the biometric data
MINEX compliance embedded extractor
Lowest FAR and FRR
Supports multiple devices
500 DPI capacitive fingerprint sensor
High speed USB 2.0 interface with plug and play
Scratch free sensor surface
STQC/Aadhaar certified fingerprint sensor
FAP10 fingerprint device
Support Aadhaar auth API specification V2.0

Please contact +971551189793 or Email: info@cardlineuae.com for enquiries and prices for MAPRO CX - Capacitive Fingerprint Scanner in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo.

Sensor Characteristics
Parameters	Specification
Fingerprint Sensor	Advanced Capacitive Sensor
Spatial Resolution	500 DPI +/-2%
Sensing Area	12.8 mm x 18 mm
Image Size	256 x 360 Pixels
Image Grayscale	256 (8 - Bit Gray Level)
Image Capture Speed (Continuous)	5 FPS
Maximum Acquisition Time	< 2 sec
Approx Dimensions (L x W x H)	58 x 33 x 11 mm
Approx Weight	0.040 Kg

Electrical Characteristics
Parameters	Specification
Operating Voltage	5V +/- 5% (USB Powered Device)
Operating Current (max)	60 mA
Stand by Current (max)	60 mA
Interface	USB 2.0

Environmental Characteristics
Parameters	Specification
Operating Temperature	0 to 50 degC
Storage Temperature	0 to 50 degC
Humidity (Operating / Storage)	< 90% RH, Non-condensing

Compliant to Following Standard
Parameters	Specification
Biometric Data Interchange Format	ISO 19794-2 for minutiae & ISO 19794-4 for Image
Environmental, Health and Safety	Template : RoHS Certification
BIS	IS 13252 (Part 1)
Safety	IEC60950
EMI / EMC Compliance	CE & FCC Class A
*FBI PIV Certification	Compliance
*STQC Certification	Yes
IP Rating	IP67 (Platen Area)
Device Driver	WHQL Certified
OS Supports	Window x86 & x64, Linux, Android
