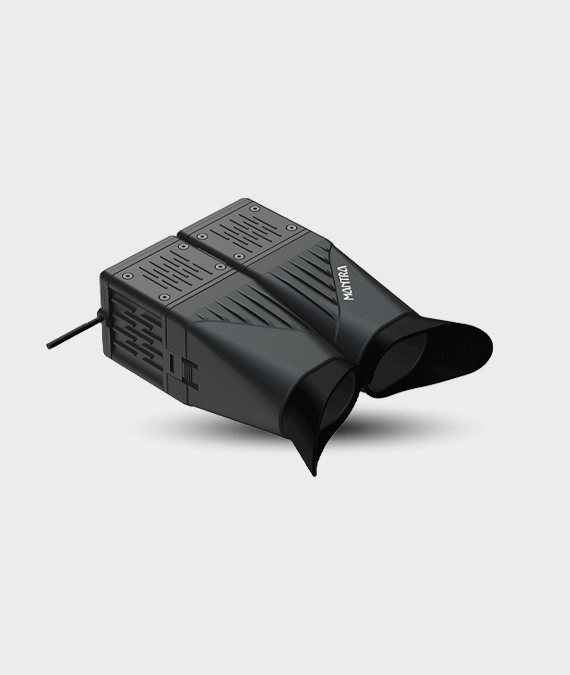

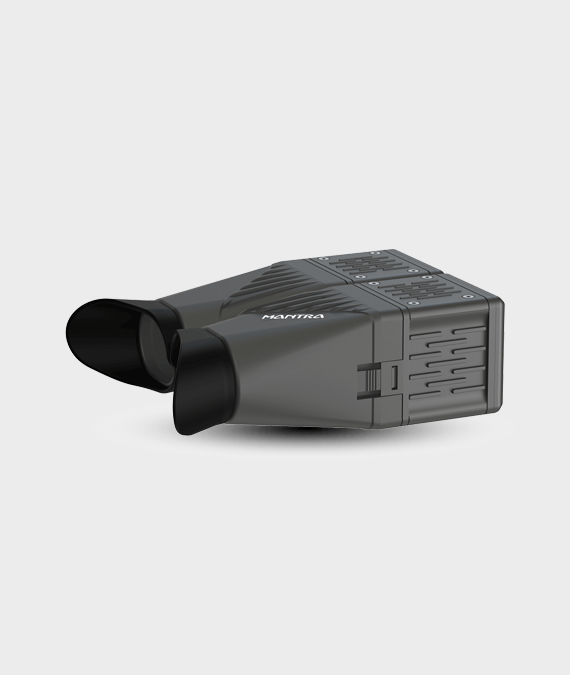

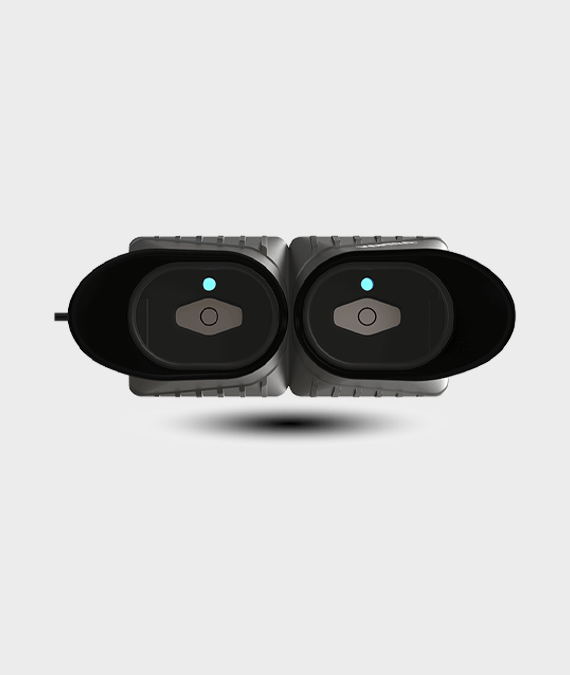

MATISX is a rugged, portable and easy-to-use dual-iris capture device that can simultaneously capture both irises with higher accuracy and greater speed. The innovative dual iris scanner is packed with compelling features that make the device suitable for diverse biometric enrollment and identification applications.

The special features of MATISX - Dual IRIS Scanner include:

Adjustable Inter Pupillary Distance
Unaffected by Ambient Lighting
Dust & Water Resistant
Compliance to EYE Safety Standards
Compliant with ANSI NIST & ISO Image Interchange Format
Supports Linux Operating Systems
Supports Windows Operating Systems
Portable, Robust, Easy-to-operate, Durable, Highly Reliable

Please contact +971551189793 or Email: info@cardlineuae.com for enquiries and prices for MATISX - Dual IRIS Scanner in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo.

IRIS Sensor
Parameters	Specification
Simultaneous Capture	Dual IRIS Capture
IRIS Diameter	> 210 Pixel
Spatial Resolution	> 60 % @ 4.0 LP/mm
Pixel Resolution	> 20 Pixel/mm
Image Margins	Left & Right >= 0.5x IRIS Diameter, Top & Bottom >= 0.25x IRIS Diameter
Pixel Depth	8 Bits/Pixel (256 Gray Level)
Pixel Depth	8 Bits/Pixel (256 Gray Level)
Imaging Wavelength	700 - 900 nm
Frame Rate	>=10 Frames/Sec
Scan Type	Progressive
Sensor SNR	> 36 dB
Capture Mode	Auto Capture with Built-in Quality Check
Illumination	Near Infra Red (NIR)
Capture Distance	> 100mm from the Front of Camera mirror
Capture Volume (WxHxD)	30 x 22.5 x15 mm
Exposure Time	< 33ms

Hardware
Parameters	Specification
Interface	USB2.0 High Speed (USB-IF Certified)
Operating Voltage	5V +/- 5%
Current Consumption	Operating :- < 375 mA (Max) , Stand By :- < 160 mA (Max)
Operating Temperature	0 to 50 °C
Operating Humidity	10-90% RH, Non-Condensing
ESD Protection	+/-4kV (Contact Discharge), +/-8kV (Air Discharge)
Device Dimension	185 x 145 x 62 mm
Device Weight	0.41Kg

Platform
Parameters	Specification
Operating System	Windows x86 and x64, Linux

Certifications
Parameters	Specification
Biometric Data Interchange Format	ISO 19794-6 for IRIS Image, ISO 29794-6 for image quality
EMI / EMC Compliance	CE & FCC Part 15B class B
Environmental, Health and Safety	ROHS
Safety	Exempt Group per IEC 62471:2006-07, IS13252 (Part 1)
Ingress Protection Rating	IP65
Device Driver	WHQL Certified
