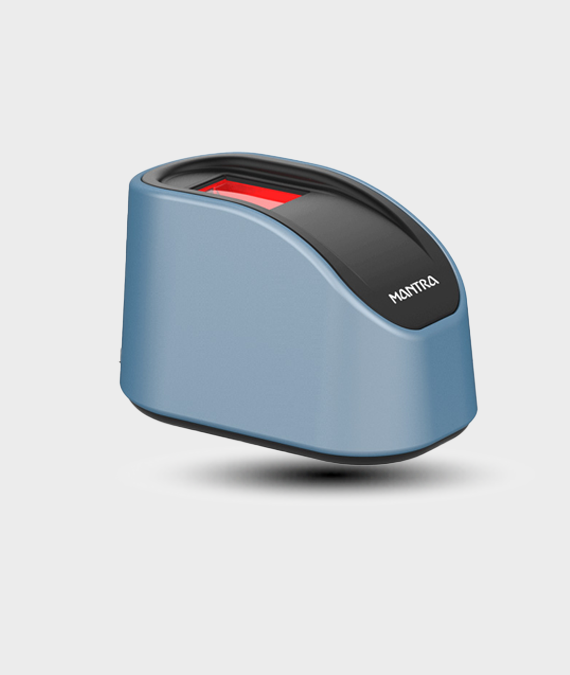

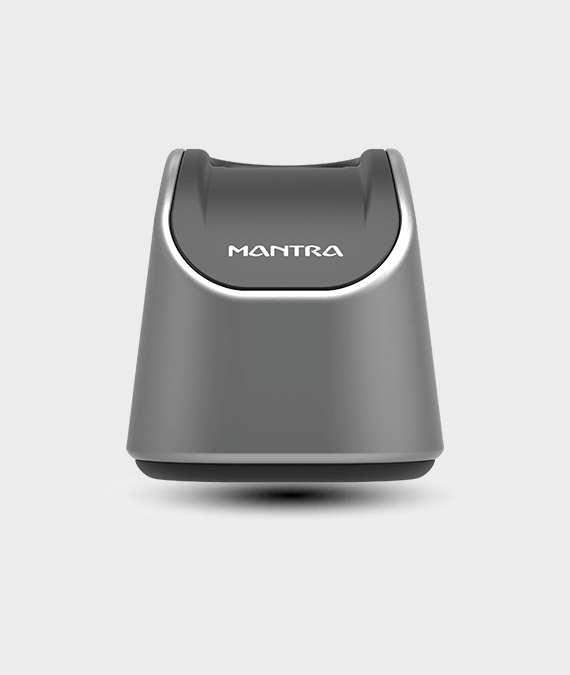

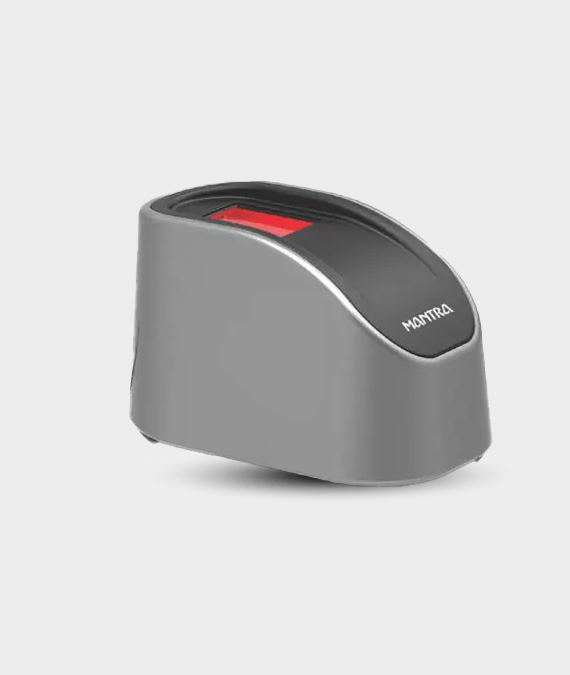

Mfs500 Optical Finger Scanner FAP10 MFS500 is a high-quality fingerprint scanner for accurate fingerprint authentication process. MFS500 is devised with an optical scratch free sensor for efficient recognition of poor quality fingerprint. MFS500 is FAP10 compliant fingerprint device and can be used for the process of identification, verification and authentication that captures the fingerprint images in a faster and reliable manner.

The special features of MFS500 - Optical Finger Scanner (FAP10) include:

Scratch free sensor surface
High speed USB 2.0 interface with plug and play
MINEX Compliance extractor
Auto Finger Detection
Support 180 Degree rotation authentication
Latent Finger Detection
Lowest FAR and FRR
500 DPI optical fingerprint sensor
Support Windows , Android & Linux system

Benefits

Easy to integrate
Offers high accuracy
Easier and faster to use
FBI PIV Certification, Mobile-ID FAP10
USB 2.0 interface

Please contact +971551189793 or Email: info@cardlineuae.com for enquiries and prices for MFS500 - Optical Finger Scanner (FAP10) in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo.

Sensor Characteristics
Parameters	Specification
Fingerprint Sensor	Optical Scratch-free Sensor
Spatial Resolution	500 DPI +/- 2%
Platen size	16.4 mm x 20.0 mm
Sensing Area	15 mm x 18 mm
Image Size	296 x 354 Pixels
Image Grayscale	256 (8 - Bit Gray Level)
Light Source	RED LED
Maximum Acquisition time	< 2 Sec
Approx Dimensions (L x W x H)	85 x 51 x 54 mm (Module: 61 x 23 x 28.5 mm)
Approx Weight	0.123 Kg (Module : 0.025 Kg)
Capture mode	Auto Finger detection functionality & Auto capture with built-in quality check (incorporates NIST quality considerations)

Electrical Characteristics
Parameters	Specification
Operating Voltage	5V +/- 5% (USB Powered Device)
Operating Current (max)	<= 85 mA
Stand by Current (max)	<= 40 mA
Interface	USB 2.0

Environmental Characteristics
Parameters	Specification
Operating Temperature	0 to 50 °C
Storage Temperature	0 to 50 °C
Humidity (Operating / Storage)	< 90% RH, Non-condensing

Compliant to Following Standard
Parameters	Specification
Biometric Data Interchange Format	ISO 19794-2, ISO 19794-4, ANSI 378, WSQ3.1, JPEG2000
Environmental, Health and Safety	RoHS
BIS	IS 13252 (Part 1)
Safety	EN/IEC 60950
EMI / EMC Compliance	CE & FCC Part 15B class A
Image Quality	FBI PIV Certification, Mobile-ID FAP10
IP Rating	IP54
Device Driver	WHQL certified with unique serial number
Operating System	Windows x86 & x64, Linux, Android
