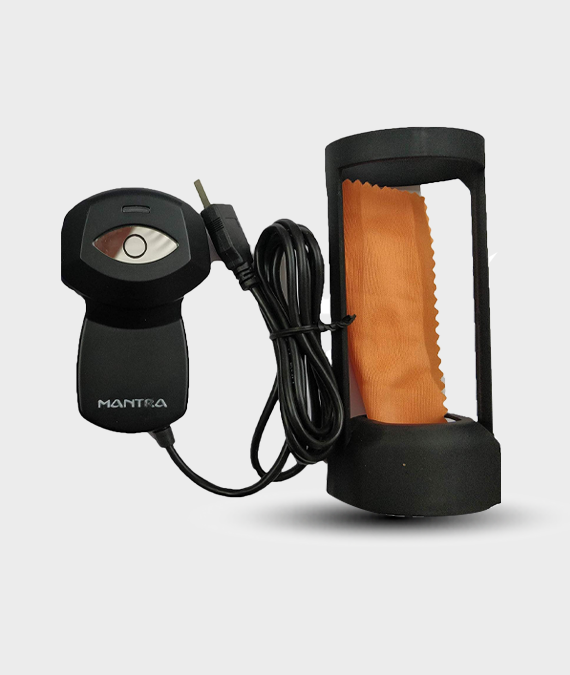

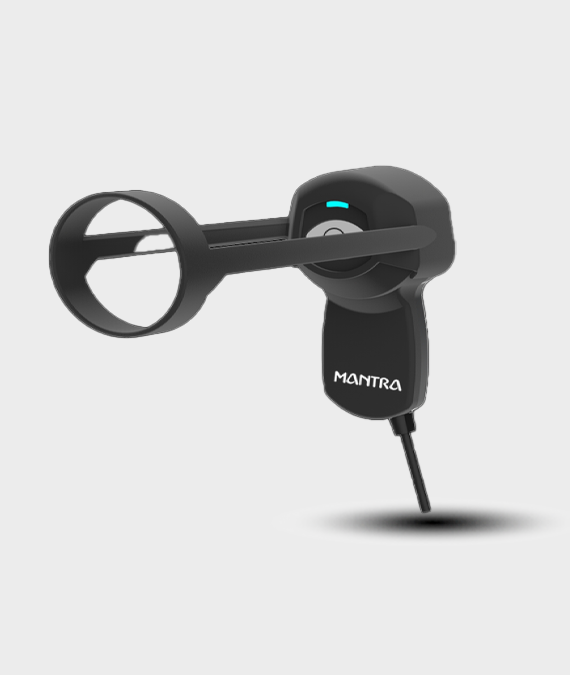

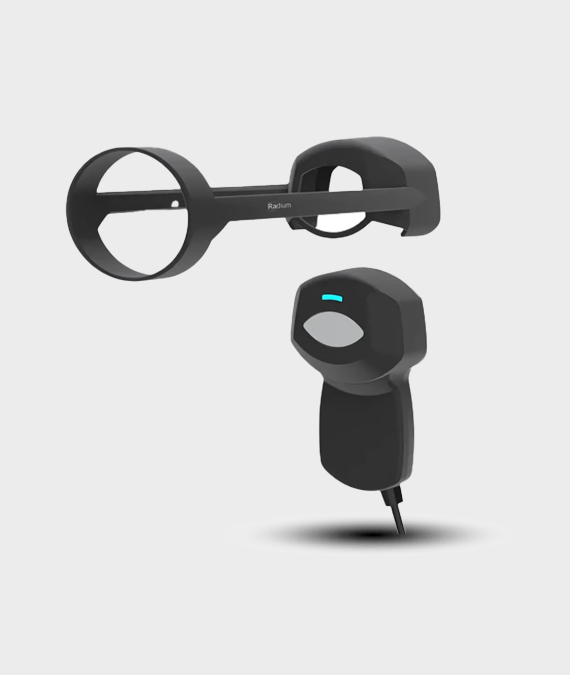

Mis100v2-Single Iris Scanner MIS100V2 is high quality USB IRIS Sensor for IRIS Authentication to access desktop or network security. Single IRIS Sensor MIS100V2 can be used extensively for identity applications like Aadhaar Authentication, Banking Applications and Access Control Applications. MIS100V2 quality algorithm can easily identify poor quality IRIS images and can be adjusted easily based on inbuilt LED indications. MIS100V2 works on proprietary distance sensing and focus analysis technology which gives it fast auto capture capabilities.

The special features of MIS100V2 - Single IRIS Scanner include:

Plug & Play USB 2.0 with High Speed Interface
Lower FAR and FRR
STQC Certified Product
Supports Windows Operating Systems
Supports Android Operating Systems
Supports Linux Operating Systems

Applications

PC/Network Security
Time and Attendance
Smart Card Application
AFIS
Health & Medical
UIDAI
Jeevan Pramaan
AEBAS
Skill Development
NREGA
PDS

Please contact +971551189793 or Email: info@cardlineuae.com for enquiries and prices for MIS100V2 - Single IRIS Scanner in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo.

Sensor Characteristics
Parameters	Specification
Spatial Resolution	> 50% @ 1.0 LP/mm
Pixel Resolution	> 10 pixels/mm
Image Margins Left & Right	>= 0.6x IRIS radius
Top & Bottom	>= 0.2x IRIS radius
Imaging Wavelength	700-900 nm
Pixel Depth	8 bits/pixel
Output Image	KIND1 to KIND7 with JPEG2000 Compression
Capture Mode	Auto Capture with Built-in Quality Check
Capture Time	< 2 sec
Safety	Exempt Group per IEC 62471:2006-07
Health-Safety	RoHS Compliant
ESD	Air Discharge+-8 KV, Contact Type +-4Kv
Radiated Emission	FCC part15B/IEC:CISPR 22 Class B Standard
Radiated Immunity	As per IEC/EN 61000-4 3:2006+A2:2010
Connectivity	USB 2.0
Operating System Supports	Windows XP, Win7, Win2008, Android, Linux, Embedded Linux
