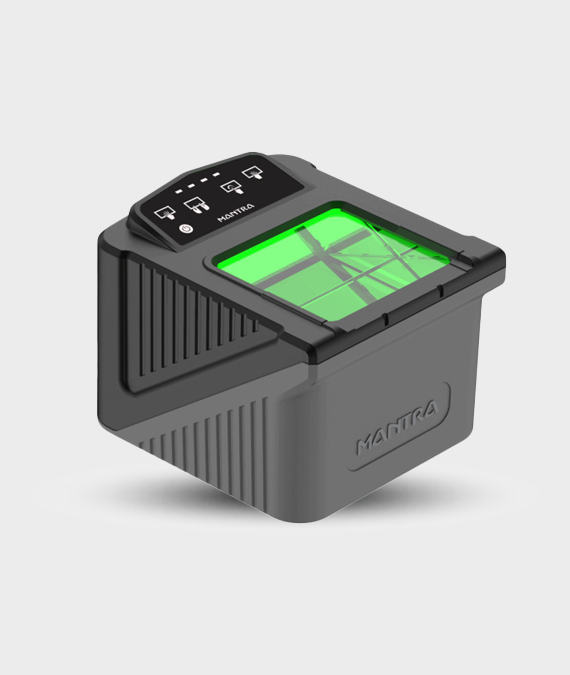

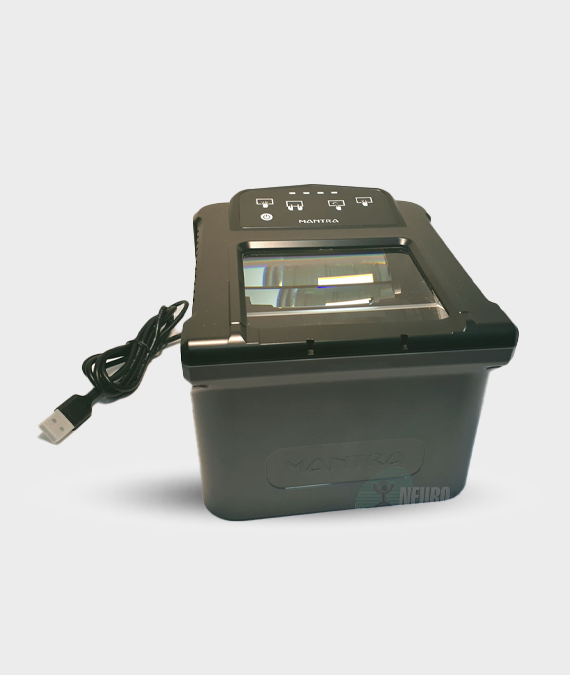

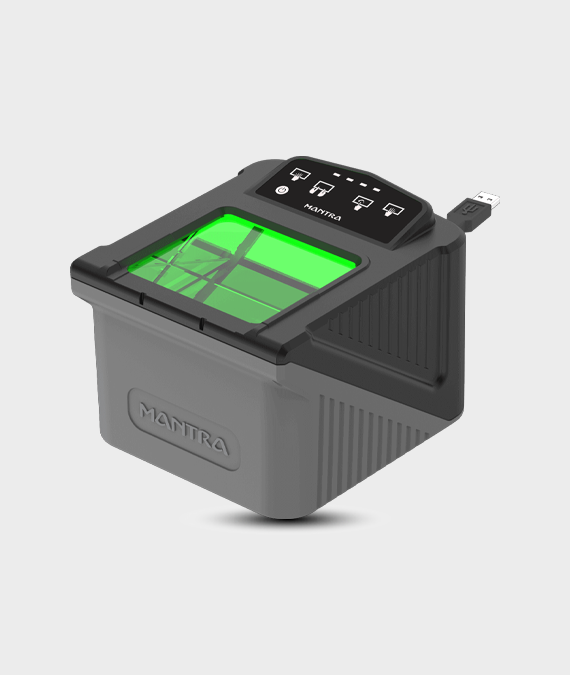

Morphs Or Multi Fingerprint Scanner MORPHS is a unique & portable ten-print fingerprint capture device used to capture multi fingerprints. The device is ideal for delivering fast, accurate and reliable fingerprint capture results for biometric verification, identification and enrollment applications including indirect or direct sunlight; dusty conditions; and dry or dirty fingers. Excellent imaging performance even when fingerprint surface is stained by ink. MORPHS is Appendix F and mobile ID FAP 60 certified. The FBI certification ensures that the reader meets stringent image quality conditions and interoperability standards to work with Automated Fingerprint Information System (AFIS) systems. MORPHS is widely used for enrolling citizens by local or central government organizations, UID-Aadhaar, NPR, National ID projects, World Bank and UNESCO schemes. Additionally, an ergonomic design combined with an easy-to-integrate SDK architecture makes MORPHS the perfect choice for system integrators and solution providers.

The special features of MORPHS - 4+4+2 or Multi Fingerprint Scanner include:

Flat Four Fingers & Two Thumbs
WHQL Certified Device Driver
Better User Interface by LED Indicators
FBI Appendix F-Compliance
USB 2.0, USB-IF compliance
Scratch-Free Surface
Water & Dust Protected Rugged Casing
IP65 Water and dust protected rugged casing & platen covered by safety cover
Device can perform indirect or direct sun - light condition (approx 100K Lux)
Captured image quality certified by FBI's IAFIS Appendix-F & Mobile ID FAP60
Excellent imaging performance with dusty conditions; and dry or dirty fingers, even when fingerprint surface is stained by ink

Please contact +971551189793 or Email: info@cardlineuae.com for enquiries and prices for MORPHS - 4+4+2 Or Multi Fingerprint Scanner in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo

Sensor
Parameters	Specification
Fingerprint Sensor Type	Optical Scratch Free Sensor
Pixel Resolution	500 DPI +/- 1%
Platen Area	3.5 x 3.2 in. (90 x 81 mm)
Capturing Format	Flat Four fingers & Two thumbs
Active Platen Area	3.2 x 3.0 Inch (81.2 x 76.2 mm)
Finger Image Pixels	1600 x 1500 Pixels
Pixel Depth	8 Bits/Pixel (256 Gray Level)
Capturing Speed	>= 4 frames/sec
Capture mode	Auto capture with built-in quality check (incorporates NIST quality considerations)

Hardware
Parameters	Specification
Interface	USB 2.0, USB-IF Compliance
Operating Voltage	5V +/- 5% (USB Powered Device)
Current Consumption	Operating : < 375 mA (Max) & Stand By : 80 mA
Operating Temperature	(Max) : 0 to 50 °C
Operating Humidity	10-90% RH, non-condensing
ESD Protection	Contact Discharge: +/- 4kV, Air Discharge: +/- 8kV
LED Indicators	Power, Status, and fingerprint image quality
Dimension	173 x 147 x 121 mm
Weight	3.6 lbs (1.6 kg)

Certification
Parameters	Specification
Biometric Data Interchange Format	ISO 19794-2:2011 for minutiae & ISO 19794-4:2011 for Image Template, WSQ3.1, JPEG2000
EMI / EMC Compliance	CE & FCC Part 15B class A
Environmental, Health and Safety	RoHS
Safety	EN/IEC 62368, IS 13252 (Part 1)
Image Quality	FBI’s IAFIS Appendix-F & Mobile ID FAP60
Ingress Protection Rating	IP65
Device Driver	WHQL certified

System Requirements
Parameters	Specification
Operating System	Windows x86 & x64, Android, Linux
Standard Software	SDK: MIDFinger_Enroll
Environmental, Health and Safety	ROHS
Software Features	NIST compliance WSQ compression module NIST compliance NFIQ Quality check Segmentation of flats into single fingerprint images
