What is Capacitive Fingerprint Scanner?

Fingerprint Scanners are biometric security devices that are used to identify a person. Finger scanners can be connected to a computer which can be communicated to an application in the system through a software development kit (SDK) supplied by the vendor. The fingerprint scanner can provide the fingerprint to the application in a variety of ways like base64 strings, images, byte array, etc. Based on the technology used the fingerprint readers are Optical fingerprint scanners and Capacitive fingerprint scanners.

In a capacitive fingerprint reader, the pattern is generated by electric voltage. The capacitive reader is expensive compared to thermal fingerprint scanners.

Mapro Cx Capacitive Fingerprint Scanner

Mapro CX is a reliable Capacitive fingerprint reader which is used by a variety of organizations. Mapro CX can be used for the identification and verification of an individual with high-resolution fingerprint images with the most advanced and rugged optical sensors. It is FAP10 complained fingerprint device since it supports MINEX compliance embedded extractor.

The special features of MAPRO CX - Capacitive Fingerprint Scanner include:

  • Device securely sign the biometric data
  • MINEX compliance embedded extractor
  • Lowest FAR and FRR
  • Supports multiple devices
  • 500 DPI capacitive fingerprint sensor
  • High speed USB 2.0 interface with plug and play
  • Scratch free sensor surface
  • STQC/Aadhaar certified fingerprint sensor
  • FAP10 fingerprint device
  • Support Aadhaar auth API specification V2.0

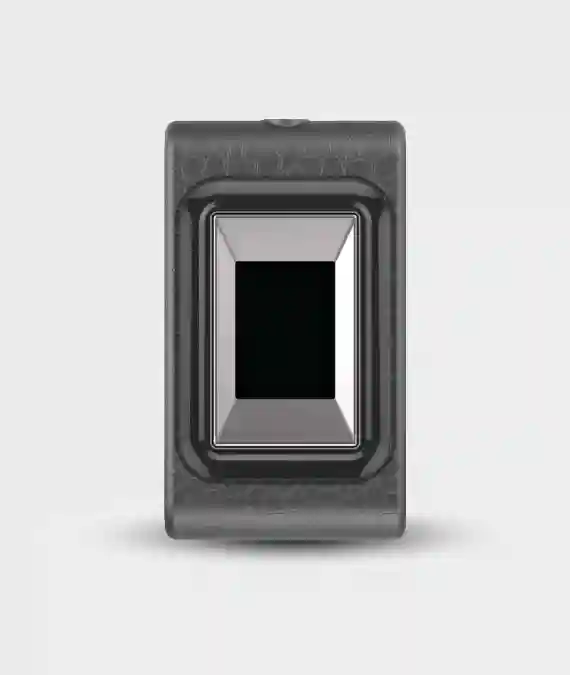

mapro cx capacitive fingerprint scanner

Please contact +971551189793 or Email: info@cardlineuae.com for enquiries and prices for MAPRO CX - Capacitive Fingerprint Scanner in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo.


Sensor Characteristics
Parameters Specification
Fingerprint Sensor Advanced Capacitive Sensor
Spatial Resolution 500 DPI +/-2%
Sensing Area 12.8 mm x 18 mm
Image Size 256 x 360 Pixels
Image Grayscale 256 (8 - Bit Gray Level)
Image Capture Speed (Continuous) 5 FPS
Maximum Acquisition Time < 2 sec
Approx Dimensions (L x W x H) 58 x 33 x 11 mm
Approx Weight 0.040 Kg

Electrical Characteristics
Parameters Specification
Operating Voltage 5V +/- 5% (USB Powered Device)
Operating Current (max) 60 mA
Stand by Current (max) 60 mA
Interface USB 2.0

Environmental Characteristics
Parameters Specification
Operating Temperature 0 to 50 degC
Storage Temperature 0 to 50 degC
Humidity (Operating / Storage) < 90% RH, Non-condensing

Compliant to Following Standard
Parameters Specification
Biometric Data Interchange Format ISO 19794-2 for minutiae & ISO 19794-4 for Image
Environmental, Health and Safety Template : RoHS Certification
BIS IS 13252 (Part 1)
Safety IEC60950
EMI / EMC Compliance CE & FCC Class A
*FBI PIV Certification Compliance
*STQC Certification Yes
IP Rating IP67 (Platen Area)
Device Driver WHQL Certified
OS Supports Window x86 & x64, Linux, Android
