What is an Optical Fingerprint Scanner?

A Fingerprint Scanner is a biometric device that is used to enroll, authenticate, and identify the fingerprint. Fingerprint scanners are used in a variety of applications like time attendance, access control, national ID, driver's license, etc. Based on the technology there are two types of fingerprint scanners

  • Optical Fingerprint Scanner

  • capacitive fingerprint scanner


Optical fingerprint scanners are the oldest form of capturing a fingerprint and comparing it. In an optical fingerprint scanner, the fingerprint is captured as an optical image. This optical image is used to find unique patterns using some algorithms.

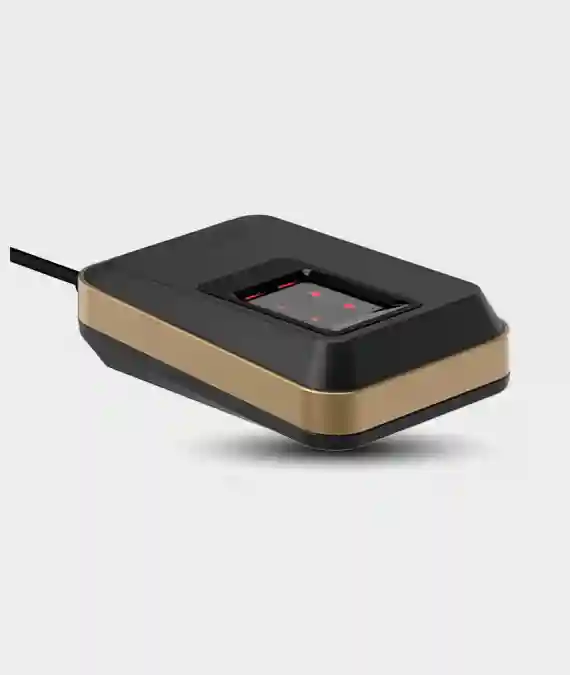

Melo31 Optical Fap30 Fingerprint Scanner

MELO31 optical fingerprint scanner comes with a variety of features like a large platen area, great speed and convenience, and latent detection. The FRR (false recognition rate) and FAR(false acceptance rate) ratios are very low compared with their peers. The Fap30 MELO31 fingerprint scanner is best-suitable for applications that require extensive security and accuracy.

The special features of MELO31 - Optical FAP30 Fingerprint Scanner include:

  • Speedy scanning
  • High precision
  • Easily integrates with compatible devices
  • Durable
  • USB 2.0 high speed interface

Features

  • Scratch Free Optical FAP30 Sensor
  • FBI PIV & Mobile ID FAP30 Certificated
  • MINEX III certified high performing fingerprint algorithm
  • Latent & Live Fingerprint detection ( rejects spoofed fingerprints)
  • Support NIST compliance WSQ/JPEG Image compression standard
  • Support ISO/IEC 19794-2:2005/2011 & ANSI INCITS 378-2004 Biometric Data Interchange Format
  • Capture high quality image with Dry, Moist, Wet or Rough fingerprints
  • Lower FRR and FAR
  • IP65 rating water and dust protection for outdoor application
Fingerprint Scanner UAE

Please contact +971551189793 or Email: info@cardlineuae.com for enquiries and prices for MELO31 - Optical FAP30 Fingerprint Scanner in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo.


Sensor Characteristics
Parameters Specification
Fingerprint Sensor Type Scratch Free Optical FAP30 Sensor
Pixel Resolution 500 DPI +/- 2%
Platen size 20.32mm x 25.40mm
Image Size 400 x 500
Image Grayscale 256 (8 - Bit Gray Level)
FRR & FAR < 0.1% & < 0.001%
Maximum Acquisition time < 2 Sec
Capture mode Auto Finger detection functionality & Auto capture with built-in quality check (incorporates NIST quality considerations) & Support 360 Degree Fingerprint Rotation
Latent Finger Detection Yes
Live finger Detection Yes *
Light Source RED LED

Interface
Parameters Specification
Protocol USB 2.0
3.3V SPI (Upto 18 Mbps) (OEM Module Only)
3.3V UART (OEM Module Only)

Electrical Characteristics
Parameters Specification
Operating Voltage 5V ±5% (USB Powered Device)
Operating Current Operating Current: < 150 mA & Standby Current : > 115 mA

Environmental Characteristics
Parameters Specification
Operating Temperature 0°C to +50°C
Storage Temperature -10°C to +70°C
Humidity (Operating / Storage) < 90% RH, Non-condensing

Compliant to Following Standard
Parameters Specification
Biometric Data Interchange Format ISO 19794-2 : 2005 & 2011, ISO 19794-4 : 2005 & 2011, ANSI 378, WSQ3.1, JPEG2000
EMI / EMC Compliance CE & FCC Part 15B class A
ESD protection Contact Discharge: +/- 8kV, Air Discharge: +/- 15kV
Environmental, Health and Safety RoHS, WEEE
Safety :EN/IEC 62368-1, IS 13252 (Part 1)
Image Quality FBI PIV Certification
IP Rating IP65
Device Driver WHQL Certified WBF driver

Dimensions
Parameters Specification
Module (L x W x H) 75.0 x 49.0 x 23.0 mm
Module Weight approx: 90g
Device (L x W x H) 89.0 x 64.0 x 25.60 mm
Device Weight approx: 150g

System Requirements
Parameters Specification
Operating System Windows x86 & x64, Android, Linux
Standard Software/SDK 1:N Matching: MIDFinger _Search
: 1:1 Matching: MID Finger_AUTH
