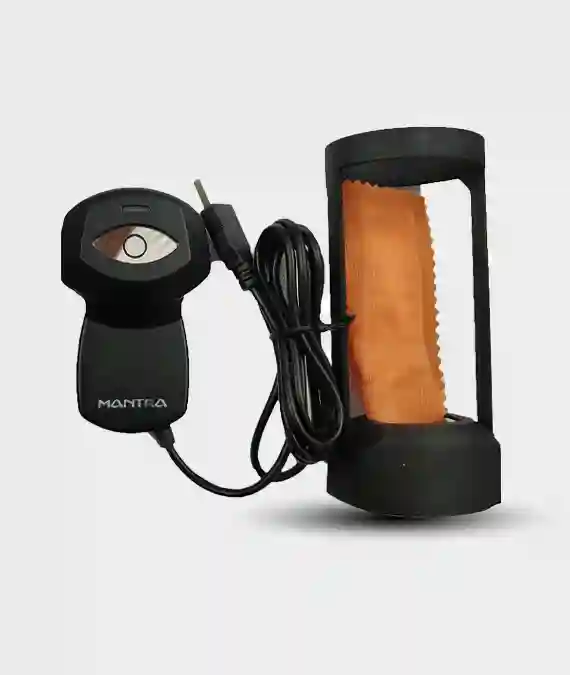

Mis100v2-Single Iris Scanner

MIS100V2 is high quality USB IRIS Sensor for IRIS Authentication to access desktop or network security. Single IRIS Sensor MIS100V2 can be used extensively for identity applications like Aadhaar Authentication, Banking Applications and Access Control Applications. MIS100V2 quality algorithm can easily identify poor quality IRIS images and can be adjusted easily based on inbuilt LED indications. MIS100V2 works on proprietary distance sensing and focus analysis technology which gives it fast auto capture capabilities.

The special features of MIS100V2 - Single IRIS Scanner include:

  • Plug & Play USB 2.0 with High Speed Interface
  • Lower FAR and FRR
  • STQC Certified Product
  • Supports Windows Operating Systems
  • Supports Android Operating Systems
  • Supports Linux Operating Systems

Applications

  • PC/Network Security
  • Time and Attendance
  • Smart Card Application
  • AFIS
  • Health & Medical
  • UIDAI
  • Jeevan Pramaan
  • AEBAS
  • Skill Development
  • NREGA
  • PDS
Single Iris Scanner

Please contact +971551189793 or Email: info@cardlineuae.com for enquiries and prices for MIS100V2 - Single IRIS Scanner in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo.


Sensor Characteristics
Parameters Specification
Spatial Resolution > 50% @ 1.0 LP/mm
Pixel Resolution > 10 pixels/mm
Image Margins Left & Right >= 0.6x IRIS radius
Top & Bottom >= 0.2x IRIS radius
Imaging Wavelength 700-900 nm
Pixel Depth 8 bits/pixel
Output Image KIND1 to KIND7 with JPEG2000 Compression
Capture Mode Auto Capture with Built-in Quality Check
Capture Time < 2 sec
Safety Exempt Group per IEC 62471:2006-07
Health-Safety RoHS Compliant
ESD Air Discharge+-8 KV, Contact Type +-4Kv
Radiated Emission FCC part15B/IEC:CISPR 22 Class B Standard
Radiated Immunity As per IEC/EN 61000-4 3:2006+A2:2010
Connectivity USB 2.0
Operating System Supports Windows XP, Win7, Win2008, Android, Linux, Embedded Linux
