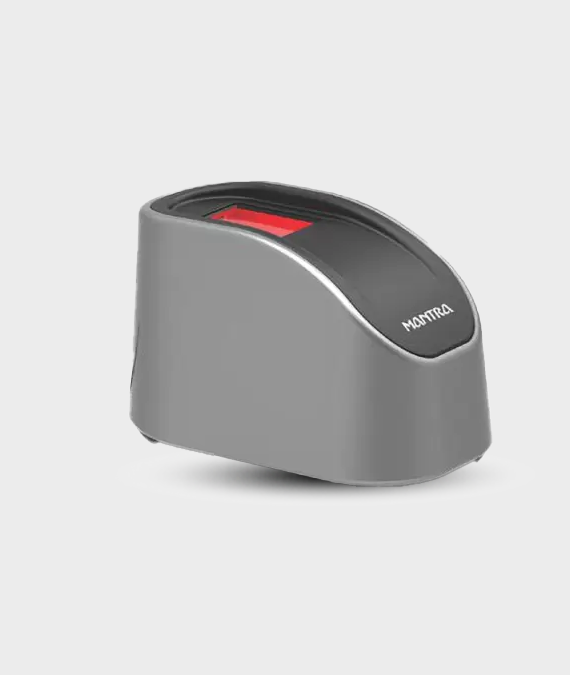

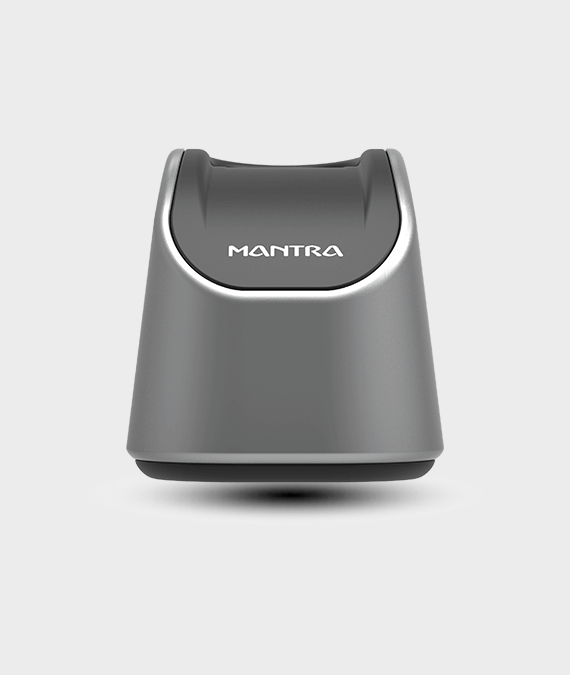

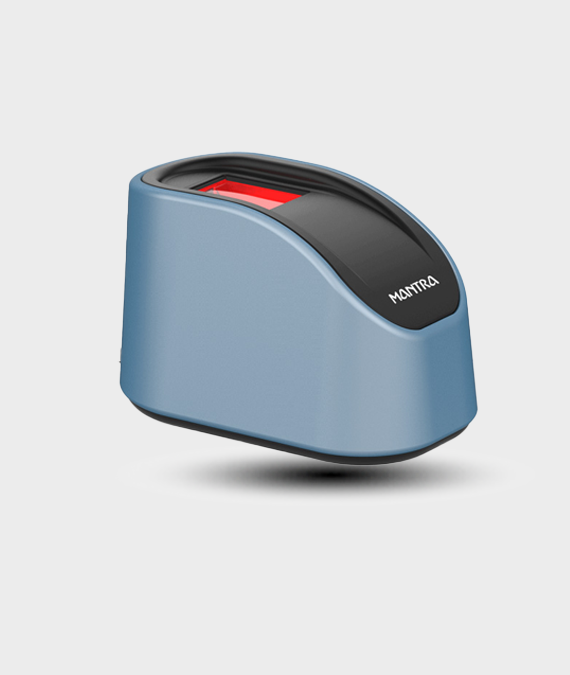

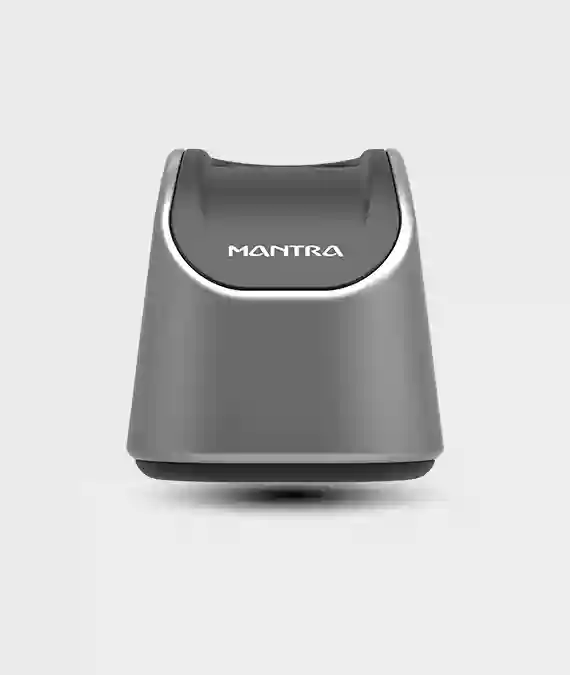

Mfs500 Optical Finger Scanner FAP10

MFS500 is a high-quality fingerprint scanner for accurate fingerprint authentication process. MFS500 is devised with an optical scratch free sensor for efficient recognition of poor quality fingerprint. MFS500 is FAP10 compliant fingerprint device and can be used for the process of identification, verification and authentication that captures the fingerprint images in a faster and reliable manner.

The special features of MFS500 - Optical Finger Scanner (FAP10) include:

  • Scratch free sensor surface
  • High speed USB 2.0 interface with plug and play
  • MINEX Compliance extractor
  • Auto Finger Detection
  • Support 180 Degree rotation authentication
  • Latent Finger Detection
  • Lowest FAR and FRR
  • 500 DPI optical fingerprint sensor
  • Support Windows , Android & Linux system

Benefits

  • Easy to integrate
  • Offers high accuracy
  • Easier and faster to use
  • FBI PIV Certification, Mobile-ID FAP10
  • USB 2.0 interface
Mfs500 Optical Finger Scanner FAP10

Please contact +971551189793 or Email: info@cardlineuae.com for enquiries and prices for MFS500 - Optical Finger Scanner (FAP10) in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras al Khaimah, Al Ain and Um al Quwain - UAE, Middle East & Africa. Saudi Arabia, Bahrain, Qatar, Kuwait, Oman, Egypt, Iraq, Yemen, South Africa, Sudan, Kenya, Uganda, Libya, Djibouti, Seychelles, DR Congo, Comoros, Togo, Tanzania, Cabo Verde, Ethiopia, Eswatini, Tunisia, Burundi, Benin, Mauritius, Rwanda, Guinea, Zimbabwe, Somalia, Chad, Senegal, Zambia, Malawi, Guinea-Bissau, Mali, Nigeria, Botswana, Cameroon, Madagascar, Ghana, Angola, Morocco, South Sudan and Congo.


Sensor Characteristics
Parameters Specification
Fingerprint Sensor Optical Scratch-free Sensor
Spatial Resolution 500 DPI +/- 2%
Platen size 16.4 mm x 20.0 mm
Sensing Area 15 mm x 18 mm
Image Size 296 x 354 Pixels
Image Grayscale 256 (8 - Bit Gray Level)
Light Source RED LED
Maximum Acquisition time < 2 Sec
Approx Dimensions (L x W x H) 85 x 51 x 54 mm (Module: 61 x 23 x 28.5 mm)
Approx Weight 0.123 Kg (Module : 0.025 Kg)
Capture mode Auto Finger detection functionality & Auto capture with built-in quality check (incorporates NIST quality considerations)

Electrical Characteristics
Parameters Specification
Operating Voltage 5V +/- 5% (USB Powered Device)
Operating Current (max) <= 85 mA
Stand by Current (max) <= 40 mA
Interface USB 2.0

Environmental Characteristics
Parameters Specification
Operating Temperature 0 to 50 °C
Storage Temperature 0 to 50 °C
Humidity (Operating / Storage) < 90% RH, Non-condensing

Compliant to Following Standard
Parameters Specification
Biometric Data Interchange Format ISO 19794-2, ISO 19794-4, ANSI 378, WSQ3.1, JPEG2000
Environmental, Health and Safety RoHS
BIS IS 13252 (Part 1)
Safety EN/IEC 60950
EMI / EMC Compliance CE & FCC Part 15B class A
Image Quality FBI PIV Certification, Mobile-ID FAP10
IP Rating IP54
Device Driver WHQL certified with unique serial number
Operating System Windows x86 & x64, Linux, Android
